vtkAbstractSequence Class Reference

#include <vtkAbstractSequence.h>

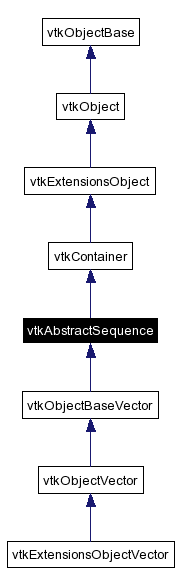

Inheritance diagram for vtkAbstractSequence:

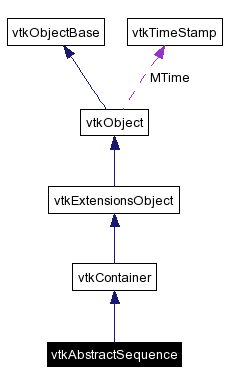

[legend]Collaboration diagram for vtkAbstractSequence:

[legend]List of all members.

---

Detailed Description

Abstract sequence object for objects.

Calls Register when objects are inserted into the sequence and UnRegister when the object is removed.

Author:

Sean McInerney

Version:

Revision

1.2

Date:

Date

2004/06/03 18:58:28

See also:

vtkContainer vtkObjectBase

Definition at line 36 of file vtkAbstractSequence.h.

Public Types
typedef int(*	CompareFunction )(const vtkObjectBase *&a1, const vtkObjectBase *&a2)
Public Member Functions
	vtkTypeRevisionMacro (vtkAbstractSequence, vtkContainer)
void	PrintSelf (ostream &, vtkIndent)
virtual int	Swap (vtkAbstractSequence *container)=0
	Swaps elements of this object with those of the specified container.
virtual vtkIdType	GetCapacity (void) const
	Returns the total number of elements that the map can hold before needing to allocate more memory.
virtual int	SetCapacity (vtkIdType capacity)=0
	Set the capacity of the sequence.
virtual vtkObjectBase *	At (vtkIdType position) const
	Provides access to the data contained in this sequence.
virtual vtkIdType	Find (const vtkObjectBase *object) const
	Find an object in the sequence.
virtual vtkIdType	Find (const vtkObjectBase *object, CompareFunction comparison) const
	Find an object in the sequence using a comparison routine.
virtual int	IsPresent (const vtkObjectBase *object) const
	Find an object in the vector.
virtual int	Insert (vtkIdType position, vtkObjectBase *object)=0
	Inserts a pointer to an object into before the specified position.
virtual int	Insert (vtkIdType position, vtkAbstractSequence *sequence)
	Insert a sequence at the specific position in this sequence.
virtual int	PushFront (vtkObjectBase *object)
	Add a pointer to an object to the front of this sequence.
int	PopFront (void)
	Removes the first element of the sequence.
virtual int	PushBack (vtkObjectBase *object)=0
	Add a pointer to an object to the end of this sequence.
int	PopBack (void)
	Removes the last element of the sequence.
virtual int	PushBack (vtkAbstractSequence *sequence)
	Append a sequence to the end of this sequence.
virtual int	Assign (vtkIdType position, vtkObjectBase *object)=0
	Sets the object at the specific position to a new value.
virtual int	Erase (vtkIdType position)=0
	Remove element at the given position.
void	DebugSequence (ostream &stream)
	Display the contents of the sequence.
virtual vtkAbstractSequenceIterator *	CreateIterator (void)=0
	Create an iterator.
Protected Member Functions
	vtkAbstractSequence (void)
	~vtkAbstractSequence ()

---

Member Typedef Documentation

typedef int(* vtkAbstractSequence::CompareFunction)(const vtkObjectBase *&a1, const vtkObjectBase *&a2)

Definition at line 44 of file vtkAbstractSequence.h.

---

Constructor & Destructor Documentation

vtkAbstractSequence::vtkAbstractSequence (  void   )  [inline, protected]

Definition at line 202 of file vtkAbstractSequence.h.

vtkAbstractSequence::~vtkAbstractSequence (   )  [inline, protected]

Definition at line 203 of file vtkAbstractSequence.h.

---

Member Function Documentation

virtual int vtkAbstractSequence::Assign (  vtkIdType  position, vtkObjectBase *  object )  [pure virtual]

Sets the object at the specific position to a new value. Returns: true if the item can be set, otherwise false. Implemented in vtkObjectBaseVector.

vtkObjectBase * vtkAbstractSequence::At (  vtkIdType  position  )  const [inline, virtual]

Provides access to the data contained in this sequence. Parameters: position  The element index for which data should be accessed. Returns: A Read/write pointer to the object if position is a valid index, otherwise null. Reimplemented in vtkExtensionsObjectVector, vtkObjectBaseVector, and vtkObjectVector. Definition at line 233 of file vtkAbstractSequence.h. References At(). Referenced by At(), Insert(), and PushBack().

virtual vtkAbstractSequenceIterator* vtkAbstractSequence::CreateIterator (  void   )  [pure virtual]

Create an iterator. Implements vtkContainer. Implemented in vtkExtensionsObjectVector, vtkObjectBaseVector, and vtkObjectVector.

void vtkAbstractSequence::DebugSequence (  ostream &  stream  )

Display the contents of the sequence.

virtual int vtkAbstractSequence::Erase (  vtkIdType  position  )  [pure virtual]

Remove element at the given position. Parameters: position  An index to the element to be erased. This function will erase the element at the given position and thus shorten the sequence by one. Implemented in vtkObjectBaseVector. Referenced by Insert(), PopBack(), and PopFront().

vtkIdType vtkAbstractSequence::Find (  const vtkObjectBase *  object, CompareFunction  comparison )  const [inline, virtual]

Find an object in the sequence using a comparison routine. Returns: true if it was found, false if it was not found. Reimplemented in vtkObjectBaseVector. Definition at line 245 of file vtkAbstractSequence.h. References Find().

vtkIdType vtkAbstractSequence::Find (  const vtkObjectBase *  object  )  const [inline, virtual]

Find an object in the sequence. Returns: The position if it was found, -1 if it was not found. Reimplemented in vtkObjectBaseVector. Definition at line 239 of file vtkAbstractSequence.h. References Find(). Referenced by Find(), and IsPresent().

vtkIdType vtkAbstractSequence::GetCapacity (  void   )  const [inline, virtual]

Returns the total number of elements that the map can hold before needing to allocate more memory. Reimplemented in vtkObjectBaseVector. Definition at line 227 of file vtkAbstractSequence.h.

int vtkAbstractSequence::Insert (  vtkIdType  position, vtkAbstractSequence *  sequence )  [inline, virtual]

Insert a sequence at the specific position in this sequence. Any objects in the vector at a location greater than position will be shifted by the size of the sequence to make room for the inserted elements. Parameters: position  An index into the vector. sequence  The sequence containing data to be inserted. Warning: This can not be used with SetCapacity() because there will be no room for the additional elements. Returns: true on success, false otherwise. Definition at line 258 of file vtkAbstractSequence.h. References At(), Erase(), vtkContainer::GetSize(), Insert(), VTK_FALSE, and VTK_TRUE.

virtual int vtkAbstractSequence::Insert (  vtkIdType  position, vtkObjectBase *  object )  [pure virtual]

Inserts a pointer to an object into before the specified position. Any objects in the sequence at a location greater than position will be shifted by one position to make room for the inserted object. Parameters: position  An index into the sequence. object  Data to be inserted. Warning: This can not be used with SetCapacity() because there will be no room for the additional object. Returns: true on success, false otherwise. Implemented in vtkObjectBaseVector. Referenced by Insert(), and PushFront().

int vtkAbstractSequence::IsPresent (  const vtkObjectBase *  object  )  const [inline, virtual]

Find an object in the vector. Returns: true if it was found, otherwise false. Definition at line 252 of file vtkAbstractSequence.h. References Find(), IsPresent(), VTK_FALSE, and VTK_TRUE. Referenced by IsPresent().

int vtkAbstractSequence::PopBack (  void   )  [inline]

Removes the last element of the sequence. This is a typical stack operation. It shrinks the sequence by one. Note: No data is returned, and if the last element's data is needed, it should be retrieved before PopBack() is called. Definition at line 289 of file vtkAbstractSequence.h. References Erase(). Referenced by PushBack().

int vtkAbstractSequence::PopFront (  void   )  [inline]

Removes the first element of the sequence. This is a typical stack operation. It shrinks the sequence by one. Note: No data is returned, and if the first element's data is needed, it should be retrieved before PopFront() is called. Definition at line 283 of file vtkAbstractSequence.h. References Erase().

void vtkAbstractSequence::PrintSelf (  ostream &  , vtkIndent  )  [virtual]

Reimplemented from vtkContainer. Reimplemented in vtkObjectBaseVector.

int vtkAbstractSequence::PushBack (  vtkAbstractSequence *  sequence  )  [inline, virtual]

Append a sequence to the end of this sequence. Parameters: sequence  The sequence containing data to be appended. Warning: This can not be used with SetCapacity() because there will be no room for the additional elements. Returns: true on success, false otherwise. Definition at line 295 of file vtkAbstractSequence.h. References At(), vtkContainer::GetSize(), PopBack(), PushBack(), VTK_FALSE, and VTK_TRUE.

virtual int vtkAbstractSequence::PushBack (  vtkObjectBase *  object  )  [pure virtual]

Add a pointer to an object to the end of this sequence. Parameters: object  Data to be added. This is a typical stack operation. The function creates an element at the end of the sequence and assigns the given pointer to it. Implemented in vtkObjectBaseVector. Referenced by PushBack().

int vtkAbstractSequence::PushFront (  vtkObjectBase *  object  )  [inline, virtual]

Add a pointer to an object to the front of this sequence. Parameters: object  Data to be added. This is a typical stack operation. The function creates an element at the front of the sequence and assigns the given data to it. Definition at line 277 of file vtkAbstractSequence.h. References Insert(), and PushFront(). Referenced by PushFront().

virtual int vtkAbstractSequence::SetCapacity (  vtkIdType  capacity  )  [pure virtual]

Set the capacity of the sequence. Returns: true if successful, false otherwise. Note: If capacity is set, the sequence will no longer automatically resize. Implemented in vtkObjectBaseVector.

virtual int vtkAbstractSequence::Swap (  vtkAbstractSequence *  container  )  [pure virtual]

Swaps elements of this object with those of the specified container. Returns: true on success, otherwise false.

vtkAbstractSequence::vtkTypeRevisionMacro (  vtkAbstractSequence  , vtkContainer  )

---

The documentation for this class was generated from the following file:

• vtkAbstractSequence.h

---
