vtkPaletteMap Class Reference

#include <vtkPaletteMap.h>

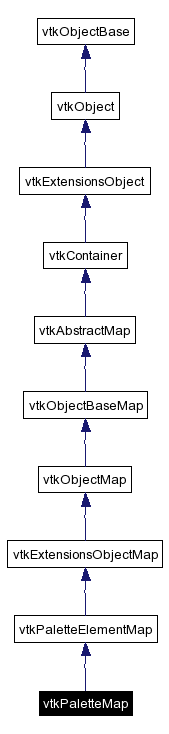

Inheritance diagram for vtkPaletteMap:

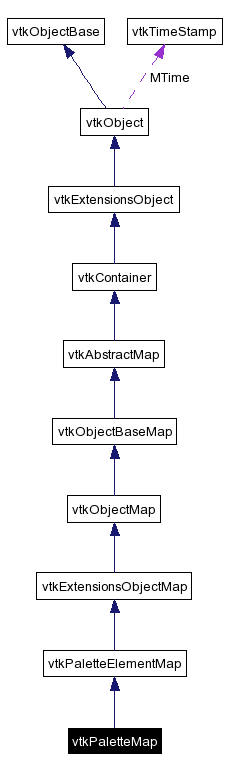

[legend]Collaboration diagram for vtkPaletteMap:

[legend]List of all members.

---

Detailed Description

A map object for palettes.

Calls Register when palettes are inserted into the map and UnRegister when the palette is removed.

Author:

Sean McInerney

Version:

Revision

1.2

Date:

Date

2004/06/12 20:01:23

See also:

vtkPaletteElementMap vtkPalette

Definition at line 36 of file vtkPaletteMap.h.

Public Member Functions
	vtkTypeRevisionMacro (vtkPaletteMap, vtkPaletteElementMap)
virtual int	Swap (vtkPaletteMap *container)
	Swaps elements of this object with those of the specified container.
vtkPalette *	Find (const char *key) const
	Find the entry in the table with the given key string.
virtual int	Insert (const char *key, vtkPalette *palette)
	Insert a palette into the table paired with a key string.
virtual const char *	FindKey (const vtkPalette *palette)
	Find the first key in the map associated with a palette pointer.
vtkPaletteMapIterator *	CreateIterator (void)
	Create an iterator.
Data Access Methods
vtkPalette *	Front (void) const
	Get a read/write pointer to the first palette in the map.
virtual int	Front (const char *&key, vtkPalette *&palette) const
	Gets the first key - palette association in the map.
vtkPalette *	Back (void) const
	Get a read/write pointer to the last palette in the map.
virtual int	Back (const char *&key, vtkPalette *&palette) const
	Gets the last key - palette association in the map.
Static Public Member Functions
vtkPaletteMap *	New (void)
Protected Member Functions
	vtkPaletteMap (void)
	~vtkPaletteMap ()

---

Constructor & Destructor Documentation

vtkPaletteMap::vtkPaletteMap (  void   )  [inline, protected]

Definition at line 124 of file vtkPaletteMap.h.

vtkPaletteMap::~vtkPaletteMap (   )  [inline, protected]

Definition at line 125 of file vtkPaletteMap.h.

---

Member Function Documentation

int vtkPaletteMap::Back (  const char *&  key, vtkPalette *&  palette )  const [inline, virtual]

Gets the last key - palette association in the map. Returns: false if the map is empty or this iterator has not been initialized to traverse any map, otherwise true. Definition at line 167 of file vtkPaletteMap.h.

vtkPalette* vtkPaletteMap::Back (  void   )  const [inline, virtual]

Get a read/write pointer to the last palette in the map. Returns: null if the map is empty, otherwise returns a pointer to a palette. Reimplemented from vtkPaletteElementMap. Definition at line 108 of file vtkPaletteMap.h.

vtkPaletteMapIterator* vtkPaletteMap::CreateIterator (  void   )  [virtual]

Create an iterator. Reimplemented from vtkPaletteElementMap.

vtkPalette* vtkPaletteMap::Find (  const char *  key  )  const [inline, virtual]

Find the entry in the table with the given key string. Parameters: key  A unique string serving as the map key. Returns: The palette associated with the specified key if found or NULL if the key is removed, empty, or non-existant. Note: Covariant return type. Reimplemented from vtkPaletteElementMap. Definition at line 59 of file vtkPaletteMap.h.

virtual const char* vtkPaletteMap::FindKey (  const vtkPalette *  palette  )  [inline, virtual]

Find the first key in the map associated with a palette pointer. Returns: true on success, false otherwise. Definition at line 82 of file vtkPaletteMap.h.

int vtkPaletteMap::Front (  const char *&  key, vtkPalette *&  palette )  const [inline, virtual]

Gets the first key - palette association in the map. Returns: false if the map is empty or this iterator has not been initialized to traverse any map, otherwise true. Definition at line 157 of file vtkPaletteMap.h.

vtkPalette* vtkPaletteMap::Front (  void   )  const [inline, virtual]

Get a read/write pointer to the first palette in the map. Returns: null if the map is empty, otherwise returns a pointer to a palette. Reimplemented from vtkPaletteElementMap. Definition at line 92 of file vtkPaletteMap.h.

virtual int vtkPaletteMap::Insert (  const char *  key, vtkPalette *  palette )  [inline, virtual]

Insert a palette into the table paired with a key string. Parameters: key  A unique string serving as the map key. palette  A palette to be associated with the key. Exceptions: bad_alloc  Internal use of operator new may throw. overflow_error  Thrown for requests to grow the table beyond its maximum capacity (~ 1<<31). Returns: true for successful additions to the table or false when attempting to insert empty or duplicate strings. Definition at line 74 of file vtkPaletteMap.h.

vtkPaletteMap* vtkPaletteMap::New (  void   )  [static]

Reimplemented from vtkPaletteElementMap.

virtual int vtkPaletteMap::Swap (  vtkPaletteMap *  container  )  [inline, virtual]

Swaps elements of this object with those of the specified container. Returns: true on success, otherwise false. Definition at line 47 of file vtkPaletteMap.h. References Swap().

vtkPaletteMap::vtkTypeRevisionMacro (  vtkPaletteMap  , vtkPaletteElementMap  )

---

The documentation for this class was generated from the following file:

• vtkPaletteMap.h

---
