vtkTraversal Class Reference

#include <vtkTraversal.h>

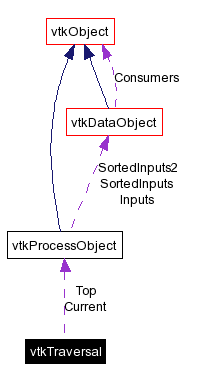

Collaboration diagram for vtkTraversal:

[legend]List of all members.

---

Detailed Description

Provides convenient traversal of pipeline objects.

Author:

Sean McInerney

Version:

Revision

1.2

Date:

Date

2004/08/10 07:37:22

Definition at line 48 of file vtkTraversal.h.

Public Member Functions
	vtkTraversal (void)
	vtkTraversal (vtkProcessObject *a)
virtual	~vtkTraversal ()
void	UpdateTop (vtkProcessObject *aNode)
void	UpdateTop (void)
vtkProcessObject *	InitTraversal (vtkProcessObject *aNode)
	Sets Current to aNode and returns Current.
vtkProcessObject *	InitTraversal (void)
	Sets Current to First and returns Current.
vtkProcessObject *	TraverseUp (void)
vtkProcessObject *	TraverseForward (int &depth)
vtkProcessObject *	TraverseForward (void)
vtkProcessObject *	TraverseBackward (void)
vtkProcessObject *	Find (vtkProcessObject *node)
vtkProcessObject *	FindByType (const char *classname)
vtkProcessObject *	FindBySupertype (const char *superclassname)
Static Public Member Functions
vtkTraversal *	New (void)
vtkProcessObject *	GetInputSource (vtkDataObject *o)
	Get the source node connecting this node to its parent data object.
vtkDataObject *	GetFirstInput (vtkProcessObject *o)
	Get the first input node connecting this node to its parent(s).
vtkDataObject *	GetParent (vtkDataObject *o)
	Return the data object immediately upstream of this node.
vtkProcessObject *	GetParent (vtkProcessObject *o)
	Return the process object immediately upstream of this node.
vtkCollection *	GetConsumers (vtkDataObject *parent, vtkCollection **=0)
	Return a list of the consumer objects of this node.
vtkDataObjectCollection *	GetOutputs (vtkProcessObject *parent, vtkDataObjectCollection **=0)
	Return a list of the output data objects of this node.
vtkDataObjectCollection *	GetChildren (vtkDataObject *parent, vtkDataObjectCollection **=0)
	Return a list of data objects downstream from this node.
vtkCollection *	GetConsumers (vtkProcessObject *parent, vtkCollection **=0)
	Return a list of consumer objects downstream from this node.
vtkProcessObjectCollection *	GetChildren (vtkProcessObject *parent, vtkProcessObjectCollection **=0)
	Return a list of consumer process objects downstream from this node.
int	GetNumberOfChildren (vtkDataObject *parent, vtkDataObjectCollection **=0)
int	GetNumberOfChildren (vtkProcessObject *parent, vtkProcessObjectCollection **=0)
vtkObject *	GetFirstConsumer (vtkDataObject *o)
vtkProcessObject *	GetFirstProcessObject (vtkDataObject *o)
vtkDataObject *	GetFirstOutput (vtkProcessObject *o)
vtkDataObject *	GetFirstChild (vtkDataObject *o)
vtkObject *	GetFirstConsumer (vtkProcessObject *o)
vtkProcessObject *	GetFirstChild (vtkProcessObject *o)
vtkObject *	GetLastConsumer (vtkDataObject *o)
vtkProcessObject *	GetLastProcessObject (vtkDataObject *o)
vtkDataObject *	GetLastOutput (vtkProcessObject *o)
vtkDataObject *	GetLastChild (vtkDataObject *o)
vtkObject *	GetLastConsumer (vtkProcessObject *o)
vtkProcessObject *	GetLastChild (vtkProcessObject *o)
vtkDataObject *	GetNextSibling (vtkDataObject *o)
vtkProcessObject *	GetNextSibling (vtkProcessObject *o)
vtkDataObject *	GetPreviousSibling (vtkDataObject *o)
vtkProcessObject *	GetPreviousSibling (vtkProcessObject *)
vtkDataObject *	GetTop (vtkDataObject *o)
vtkProcessObject *	GetTop (vtkProcessObject *o)
vtkProcessObject *	Splice (vtkProcessObject *newNode, vtkProcessObject *refNode)
	Inserts newNode as a parent of the existing node refNode.
vtkProcessObject *	Replace (vtkProcessObject *newNode, vtkProcessObject *oldNode)
	Replaces the node oldNode with newNode.
vtkProcessObject *	Remove (vtkProcessObject *oldNode)
	Removes the node indicated by oldNode and returns it.
vtkSource *	Append (vtkSource *newNode, vtkProcessObject *refNode)
	Adds the node newNode to the termial end of the tree occupied by refNode.
vtkBoolType	HasChildren (vtkDataObject *o)
vtkBoolType	HasChildren (vtkProcessObject *o)
unsigned short	ComparePosition (vtkProcessObject *o)
vtkBoolType	IsSame (vtkProcessObject *o)
vtkBoolType	IsEqual (vtkProcessObject *o)
Protected Types
typedef vtkTraversal	Self
Static Protected Member Functions
int	GetConsumerIndex (vtkDataObject *o, vtkObject *consumer)
	Returns the index of the specified consumer of a DataObject.
int	GetOutputIndex (vtkProcessObject *o, vtkDataObject *output)
	Returns the index of the specified output of a ProcessObject.
int	SetNthInput (vtkProcessObject *node, int index, vtkDataObject *input)
	Set the n'th input of a filter or mapper.
vtkBoolType	IsSelfOrAncestor (vtkProcessObject *node, vtkProcessObject *child)
	Check if child is same as node or if child is one of node's ancestors.
Protected Attributes
vtkProcessObject *	Top
vtkProcessObject *	Current

---

Member Typedef Documentation

typedef vtkTraversal vtkTraversal::Self [protected]

Definition at line 210 of file vtkTraversal.h.

---

Constructor & Destructor Documentation

vtkTraversal::vtkTraversal (  void   )

vtkTraversal::vtkTraversal (  vtkProcessObject *  a  )

virtual vtkTraversal::~vtkTraversal (   )  [virtual]

---

Member Function Documentation

vtkSource* vtkTraversal::Append (  vtkSource *  newNode, vtkProcessObject *  refNode )  [static]

Adds the node newNode to the termial end of the tree occupied by refNode. Parameters: newNode  The node to add. refNode  The reference node. Returns: The node added on success or null on failure. Note: If the newNode is already in the tree, it is first removed.

unsigned short vtkTraversal::ComparePosition (  vtkProcessObject *  o  )  [inline, static]

Definition at line 200 of file vtkTraversal.h.

vtkProcessObject * vtkTraversal::Find (  vtkProcessObject *  node  )  [inline]

Definition at line 775 of file vtkTraversal.h. References Find(), InitTraversal(), and TraverseForward(). Referenced by Find().

vtkProcessObject * vtkTraversal::FindBySupertype (  const char *  superclassname  )  [inline]

Definition at line 805 of file vtkTraversal.h. References FindBySupertype(), InitTraversal(), vtkProcessObject::IsA(), and TraverseForward(). Referenced by FindBySupertype().

vtkProcessObject * vtkTraversal::FindByType (  const char *  classname  )  [inline]

Definition at line 790 of file vtkTraversal.h. References FindByType(), vtkProcessObject::GetClassName(), InitTraversal(), and TraverseForward(). Referenced by FindByType().

vtkProcessObjectCollection* vtkTraversal::GetChildren (  vtkProcessObject *  parent, vtkProcessObjectCollection **  = 0 )  [static]

Return a list of consumer process objects downstream from this node.

vtkDataObjectCollection* vtkTraversal::GetChildren (  vtkDataObject *  parent, vtkDataObjectCollection **  = 0 )  [static]

Return a list of data objects downstream from this node.

int vtkTraversal::GetConsumerIndex (  vtkDataObject *  o, vtkObject *  consumer )  [inline, static, protected]

Returns the index of the specified consumer of a DataObject. Note: Returns NULL on failure. Definition at line 257 of file vtkTraversal.h. References vtkDataObject::GetConsumer(), GetConsumerIndex(), and vtkDataObject::GetNumberOfConsumers(). Referenced by GetConsumerIndex().

vtkCollection* vtkTraversal::GetConsumers (  vtkProcessObject *  parent, vtkCollection **  = 0 )  [static]

Return a list of consumer objects downstream from this node.

vtkCollection* vtkTraversal::GetConsumers (  vtkDataObject *  parent, vtkCollection **  = 0 )  [static]

Return a list of the consumer objects of this node.

vtkProcessObject * vtkTraversal::GetFirstChild (  vtkProcessObject *  o  )  [static]

Definition at line 480 of file vtkTraversal.h. References GetFirstChild().

vtkDataObject * vtkTraversal::GetFirstChild (  vtkDataObject *  o  )  [static]

Definition at line 453 of file vtkTraversal.h. References GetFirstChild(). Referenced by GetFirstChild().

vtkObject * vtkTraversal::GetFirstConsumer (  vtkProcessObject *  o  )  [static]

Definition at line 467 of file vtkTraversal.h. References GetFirstConsumer().

vtkObject * vtkTraversal::GetFirstConsumer (  vtkDataObject *  o  )  [static]

Definition at line 409 of file vtkTraversal.h. References vtkDataObject::GetConsumer(), GetFirstConsumer(), and vtkDataObject::GetNumberOfConsumers(). Referenced by GetFirstConsumer().

vtkDataObject * vtkTraversal::GetFirstInput (  vtkProcessObject *  o  )  [static]

Get the first input node connecting this node to its parent(s). Definition at line 368 of file vtkTraversal.h. References GetFirstInput(), vtkProcessObject::GetInputs(), and vtkProcessObject::GetNumberOfInputs(). Referenced by GetFirstInput().

vtkDataObject * vtkTraversal::GetFirstOutput (  vtkProcessObject *  o  )  [static]

Definition at line 435 of file vtkTraversal.h. References GetFirstOutput(), vtkSource::GetNumberOfOutputs(), and vtkSource::GetOutputs(). Referenced by GetFirstOutput().

vtkProcessObject * vtkTraversal::GetFirstProcessObject (  vtkDataObject *  o  )  [static]

Definition at line 421 of file vtkTraversal.h. References vtkDataObject::GetConsumer(), GetFirstProcessObject(), and vtkDataObject::GetNumberOfConsumers(). Referenced by GetFirstProcessObject().

vtkProcessObject * vtkTraversal::GetInputSource (  vtkDataObject *  o  )  [static]

Get the source node connecting this node to its parent data object. Definition at line 358 of file vtkTraversal.h. References GetInputSource(), and vtkDataObject::GetSource(). Referenced by GetInputSource().

vtkProcessObject * vtkTraversal::GetLastChild (  vtkProcessObject *  o  )  [static]

Definition at line 565 of file vtkTraversal.h. References GetLastChild().

vtkDataObject * vtkTraversal::GetLastChild (  vtkDataObject *  o  )  [static]

Definition at line 538 of file vtkTraversal.h. References GetLastChild(). Referenced by GetLastChild().

vtkObject * vtkTraversal::GetLastConsumer (  vtkProcessObject *  o  )  [static]

Definition at line 552 of file vtkTraversal.h. References GetLastConsumer().

vtkObject * vtkTraversal::GetLastConsumer (  vtkDataObject *  o  )  [static]

Definition at line 494 of file vtkTraversal.h. References vtkDataObject::GetConsumer(), GetLastConsumer(), and vtkDataObject::GetNumberOfConsumers(). Referenced by GetLastConsumer().

vtkDataObject * vtkTraversal::GetLastOutput (  vtkProcessObject *  o  )  [static]

Definition at line 520 of file vtkTraversal.h. References GetLastOutput(), vtkSource::GetNumberOfOutputs(), and vtkSource::GetOutputs(). Referenced by GetLastOutput().

vtkProcessObject * vtkTraversal::GetLastProcessObject (  vtkDataObject *  o  )  [static]

Definition at line 506 of file vtkTraversal.h. References vtkDataObject::GetConsumer(), GetLastProcessObject(), and vtkDataObject::GetNumberOfConsumers(). Referenced by GetLastProcessObject().

vtkProcessObject * vtkTraversal::GetNextSibling (  vtkProcessObject *  o  )  [static]

Definition at line 595 of file vtkTraversal.h. References vtkDataObject::GetConsumer(), GetNextSibling(), and vtkDataObject::GetNumberOfConsumers().

vtkDataObject * vtkTraversal::GetNextSibling (  vtkDataObject *  o  )  [static]

Definition at line 579 of file vtkTraversal.h. References GetNextSibling(), vtkSource::GetNumberOfOutputs(), and vtkSource::GetOutputs(). Referenced by GetNextSibling(), and TraverseForward().

int vtkTraversal::GetNumberOfChildren (  vtkProcessObject *  parent, vtkProcessObjectCollection **  = 0 )  [static]

int vtkTraversal::GetNumberOfChildren (  vtkDataObject *  parent, vtkDataObjectCollection **  = 0 )  [static]

int vtkTraversal::GetOutputIndex (  vtkProcessObject *  o, vtkDataObject *  output )  [inline, static, protected]

Returns the index of the specified output of a ProcessObject. Note: Returns NULL on failure. Definition at line 274 of file vtkTraversal.h. References GetOutputIndex(). Referenced by GetOutputIndex().

vtkDataObjectCollection* vtkTraversal::GetOutputs (  vtkProcessObject *  parent, vtkDataObjectCollection **  = 0 )  [static]

Return a list of the output data objects of this node.

vtkProcessObject * vtkTraversal::GetParent (  vtkProcessObject *  o  )  [static]

Return the process object immediately upstream of this node. Definition at line 395 of file vtkTraversal.h. References GetParent().

vtkDataObject * vtkTraversal::GetParent (  vtkDataObject *  o  )  [static]

Return the data object immediately upstream of this node. Definition at line 382 of file vtkTraversal.h. References GetParent(). Referenced by GetParent().

vtkProcessObject * vtkTraversal::GetPreviousSibling (  vtkProcessObject *   )  [static]

Definition at line 627 of file vtkTraversal.h. References vtkDataObject::GetConsumer(), and GetPreviousSibling().

vtkDataObject * vtkTraversal::GetPreviousSibling (  vtkDataObject *  o  )  [static]

Definition at line 611 of file vtkTraversal.h. References vtkSource::GetOutputs(), and GetPreviousSibling(). Referenced by GetPreviousSibling().

vtkProcessObject * vtkTraversal::GetTop (  vtkProcessObject *  o  )  [static]

Definition at line 655 of file vtkTraversal.h. References GetTop().

vtkDataObject * vtkTraversal::GetTop (  vtkDataObject *  o  )  [static]

Definition at line 644 of file vtkTraversal.h. References GetTop(). Referenced by GetTop().

vtkBoolType vtkTraversal::HasChildren (  vtkProcessObject *  o  )  [static]

vtkBoolType vtkTraversal::HasChildren (  vtkDataObject *  o  )  [static]

vtkProcessObject * vtkTraversal::InitTraversal (  void   )  [inline]

Sets Current to First and returns Current. Definition at line 686 of file vtkTraversal.h. References Current, and Top. Referenced by Find(), FindBySupertype(), and FindByType().

vtkProcessObject * vtkTraversal::InitTraversal (  vtkProcessObject *  aNode  )  [inline]

Sets Current to aNode and returns Current. Definition at line 680 of file vtkTraversal.h. References Current.

vtkBoolType vtkTraversal::IsEqual (  vtkProcessObject *  o  )  [inline, static]

Definition at line 203 of file vtkTraversal.h. References vtkBoolType.

vtkBoolType vtkTraversal::IsSame (  vtkProcessObject *  o  )  [inline, static]

Definition at line 202 of file vtkTraversal.h. References vtkBoolType.

vtkBoolType vtkTraversal::IsSelfOrAncestor (  vtkProcessObject *  node, vtkProcessObject *  child )  [inline, static, protected]

Check if child is same as node or if child is one of node's ancestors. Definition at line 328 of file vtkTraversal.h. References IsSelfOrAncestor(), VTK_FALSE, and VTK_TRUE. Referenced by IsSelfOrAncestor().

vtkTraversal* vtkTraversal::New (  void   )  [inline, static]

Definition at line 51 of file vtkTraversal.h.

vtkProcessObject* vtkTraversal::Remove (  vtkProcessObject *  oldNode  )  [static]

Removes the node indicated by oldNode and returns it. Parameters: oldNode  The node being removed. Returns: The node removed on success or null on failure.

vtkProcessObject* vtkTraversal::Replace (  vtkProcessObject *  newNode, vtkProcessObject *  oldNode )  [static]

Replaces the node oldNode with newNode. Parameters: newNode  The new node. oldNode  The node being replaced. Returns: The node being replaced on success or null on failure. Note: If the newNode is already in the tree, it is first removed.

int vtkTraversal::SetNthInput (  vtkProcessObject *  node, int  index, vtkDataObject *  input )  [inline, static, protected]

Set the n'th input of a filter or mapper. Parameters: node  The filter of mapper to modify. index  An index into the array of inputs. input  The new value for the n'th input. Returns: VTK_OK on success or VTK_ERROR on failure. Definition at line 294 of file vtkTraversal.h. References vtkDataObject::AddConsumer(), vtkProcessObject::GetInputs(), vtkProcessObject::GetNumberOfInputs(), vtkObject::Modified(), vtkObject::Register(), SetNthInput(), VTK_ERROR, and VTK_OK. Referenced by SetNthInput().

vtkProcessObject* vtkTraversal::Splice (  vtkProcessObject *  newNode, vtkProcessObject *  refNode )  [static]

Inserts newNode as a parent of the existing node refNode. Parameters: newNode  The node to insert above refNode. refNode  The reference node, i.e., the node above which the new node must be inserted. Returns: The node being inserted on success or null on failure. Note: If the newNode is already in the tree, it is first removed. Warning: Does NOT properly handle multiple input or multiple output filters.

vtkProcessObject * vtkTraversal::TraverseBackward (  void   )  [inline]

Definition at line 747 of file vtkTraversal.h. References Current.

vtkProcessObject * vtkTraversal::TraverseForward (  void   )  [inline]

Definition at line 739 of file vtkTraversal.h. Referenced by Find(), FindBySupertype(), and FindByType().

vtkProcessObject * vtkTraversal::TraverseForward (  int &  depth  )  [inline]

Definition at line 700 of file vtkTraversal.h. References Current, and GetNextSibling().

vtkProcessObject * vtkTraversal::TraverseUp (  void   )  [inline]

Definition at line 692 of file vtkTraversal.h. References Current.

void vtkTraversal::UpdateTop (  void   )  [inline]

Definition at line 674 of file vtkTraversal.h. References Top.

void vtkTraversal::UpdateTop (  vtkProcessObject *  aNode  )  [inline]

Definition at line 667 of file vtkTraversal.h. References Current, and Top.

---

Member Data Documentation

vtkProcessObject* vtkTraversal::Current [protected]

Definition at line 207 of file vtkTraversal.h. Referenced by InitTraversal(), TraverseBackward(), TraverseForward(), TraverseUp(), and UpdateTop().

vtkProcessObject* vtkTraversal::Top [protected]

Definition at line 206 of file vtkTraversal.h. Referenced by InitTraversal(), and UpdateTop().

---

The documentation for this class was generated from the following file:

• vtkTraversal.h

---
